CD-M50-S-UA-WB

cdm50wb2.jpg        cdm50wb3.jpg

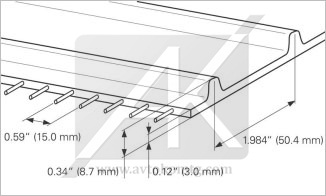

Belt data:


Nominal pitch 1.984" (50.4 mm)
Tensile member Aramide
Elastomer TPU / 95 Shore A / White
Conveying side (surface) Smooth
Minimal seamless width of belt 6" (152.4 mm)
Maximal seamless width of belt 24" (610 mm)
On request, maximal width of belt 48" (1220 mm)
Distance of cords 0.59" (15.0 mm)
Nominal tensile strength per unit of width (joined belt)* 550 lbf/ft (8.0 N/mm)
Mass of belt 0.88 lb/sqft (4.3 kg/m²)
Operating temperature admissible (continuous) -22°F - 176°F (-30°C - 80°C)
Minimum length of endless joined belt with standard tools 48" (1220 mm)

*For belts equipped with a mechanical joint the nominal tensile strength is limited to 275 lbf/ft (4.0 N/mm)
